Description

The 1000 SQ Heavy Duty Cover and Frame is a high quality polymer concrete manhole cover manufactured to SABS specifications. It provides excellent resistance to corrosion, moisture, chemical exposure, weathering, and long-term wear in demanding infrastructure environments.

With a 135kN load rating, the 1000 SQ Heavy Duty Cover and Frame is ideal for municipal roads, industrial facilities, commercial developments, utility chambers and stormwater networks. The large daylight opening improves access to underground services, making inspections and maintenance faster and more efficient.

Manufacturing to SABS specifications ensures consistent quality, durability, and structural performance. Optional locking systems are available for enhanced security and controlled access where required. The 1000 SQ Heavy Duty have custom designed lifting toolset specifically designed for them.

It provides a durable, cost-effective, and low-maintenance solution for municipal, commercial, industrial, and civil infrastructure projects across South Africa.

Technical Datasheet

Download the official technical datasheet for detailed specifications, dimensions, and installation guidance.



Download Datasheet

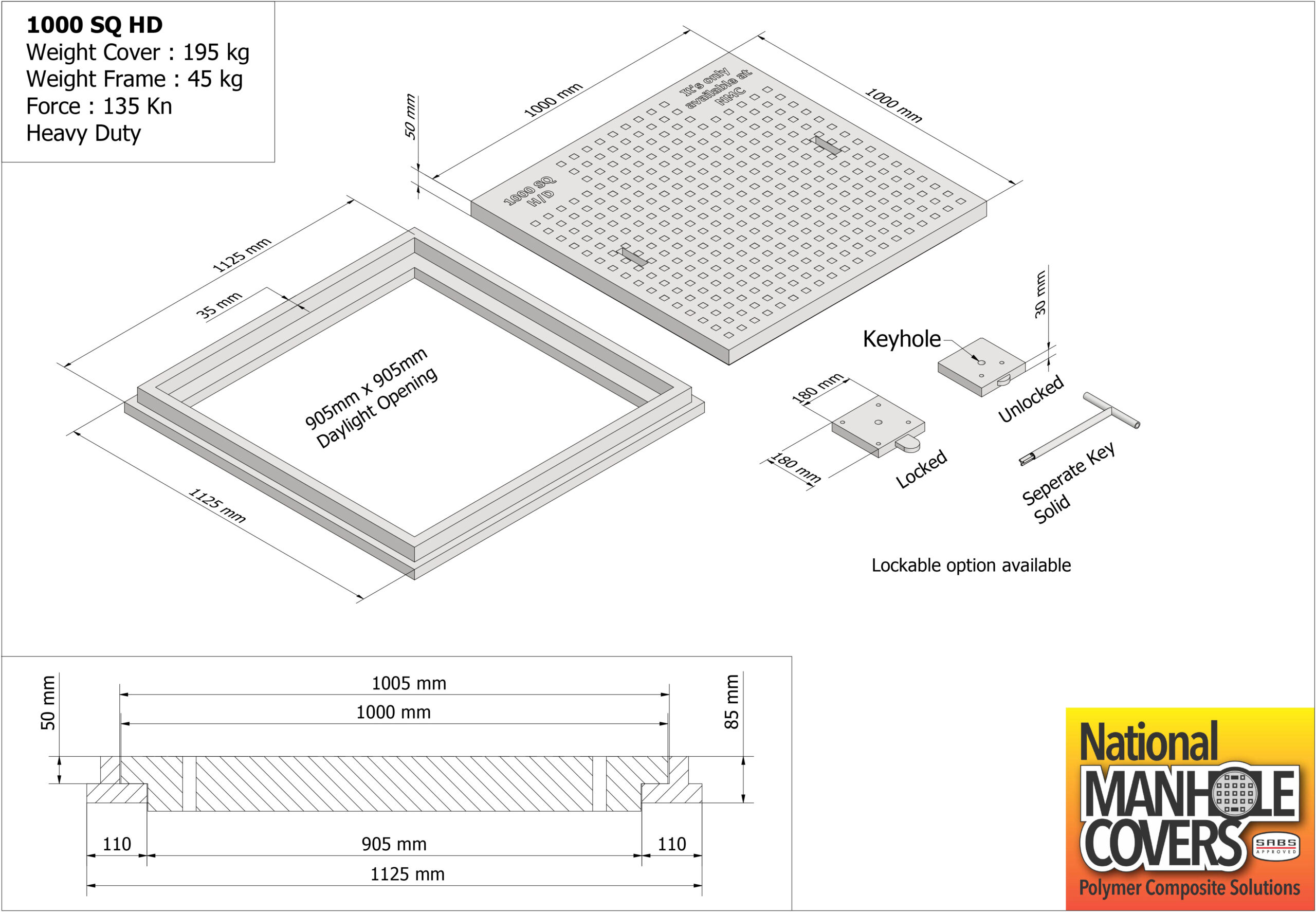

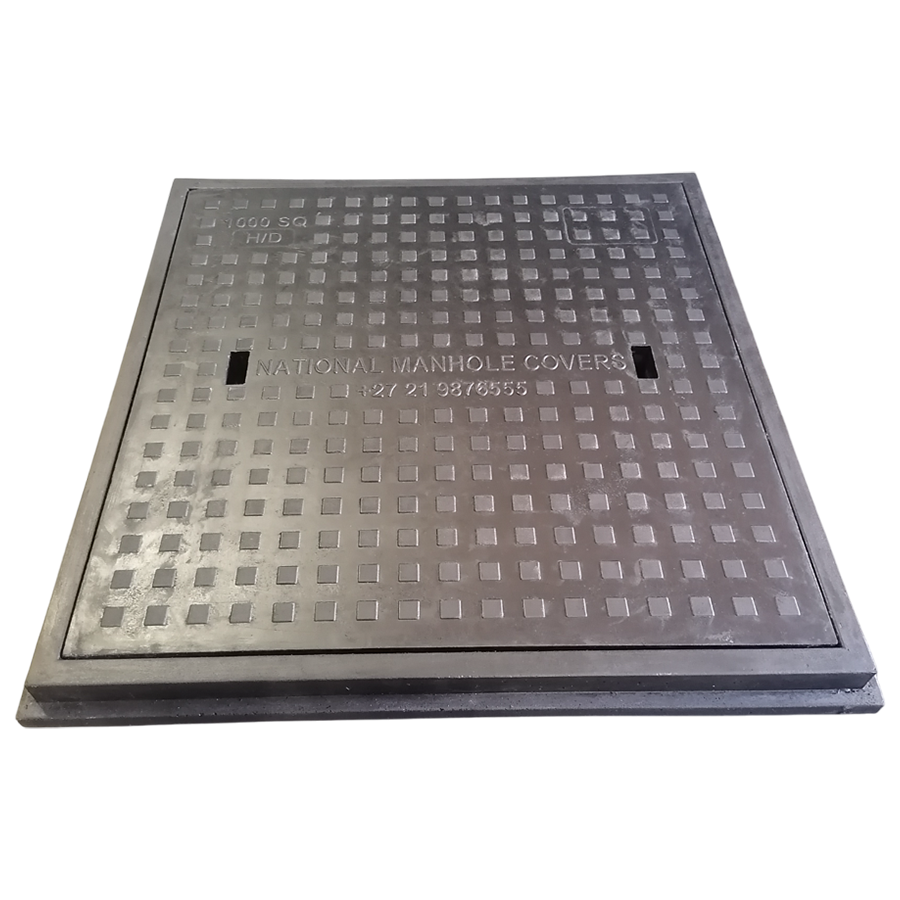

1000 SQ Heavy Duty Cover and Frame

A SABS specifications 1000 SQ heavy-duty polymer concrete manhole cover and frame, engineered for high-load infrastructure applications with a 135 kN load rating.

Usage Municipal roads, drainage infrastructure, telecommunications access, and industrial service access
Cover Dimensions 1000x1000x85mm
Frame Dimensions 1125x1125x85mm
Clear Opening 905x905mm
Cover Weight 195kg
Frame Weight 45kg
Load Force 135kN
Duty Class Heavy Duty
Locking Mechanism Optional lockable keyhole system
Colours Black
