Description

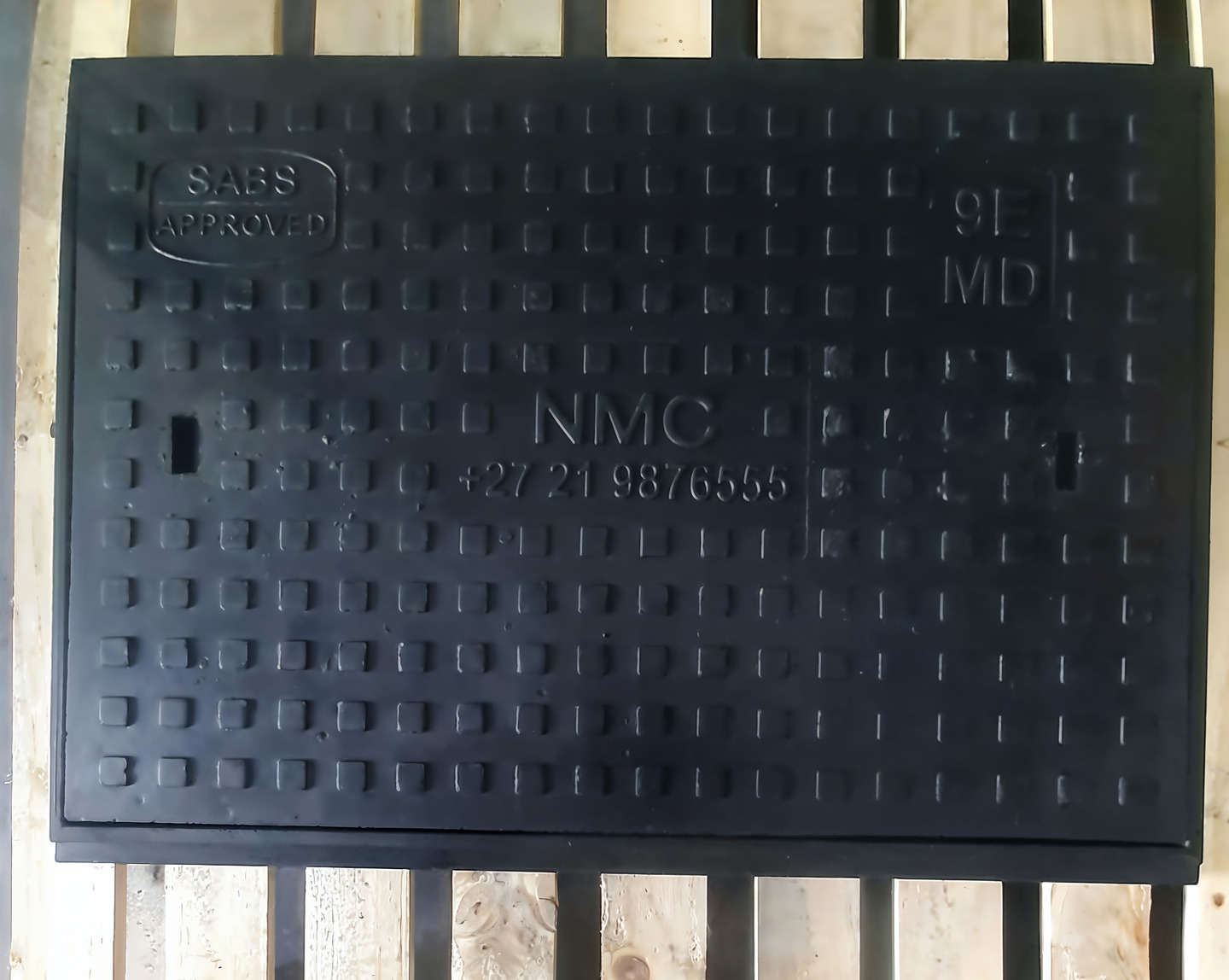

The 9E Medium Duty Manhole Cover and Frame is a durable rectangular access solution designed for a range of civil and infrastructure applications. With a 40 kN load force and medium duty classification, it provides reliable access protection for applications where dependable performance and durability are required.
The cover measures 930 × 630 × 60 mm, while the frame measures 1010 × 720 × 60 mm. The technical drawing shows a 895 × 595 mm daylight opening, providing a practical access area for the intended installation. The cover weighs 85 kg, while the frame weighs 14 kg.
Manufactured from resin, silica and fibre, the 9E Medium Duty is designed to provide a robust, non-metallic solution for infrastructure access points. The material offers resistance to acid and oil, supporting its use in demanding service environments.
